CT

CT/E Single

• 2.0 MHU Anode head capacity
• 500kHU/min max anode dissipation rate
• On-Board 24 KW Generator
• 120 cm metal-free scannable range
• Supports 180 kg patients accurately
• 65 cm aperture
• ± 20° Gantry tilt

CT/E HI Speed Dual

• 2.0 MHU Anode head capacity
• 500kHU/min max anode dissipation rate
• On-Board 24 KW Generator
• 120 cm metal-free scannable range
• Supports 180 kg patients accurately
• 65 cm aperture
• ± 20° Gantry tilt

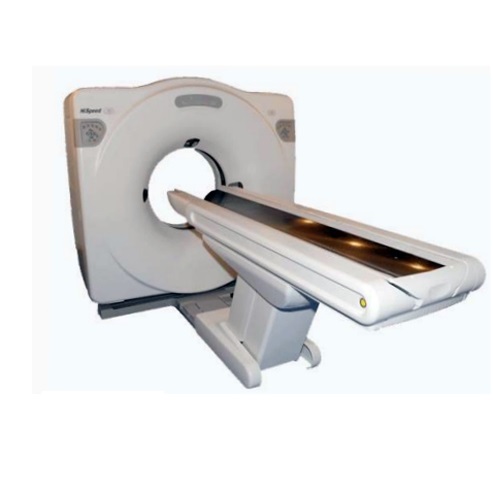

Hispeed LXI/FXI/DXI

• 3.5 MHU anode heat capacity
• 820 kHU/min max anode dissipation rate
• On-Board 24 KW Generator
• 134 cm metal-free scannable range
• Supports 205 kg (450 lbs) patients accurately
• 70 cm aperture
• ± 30° Gantry tilt

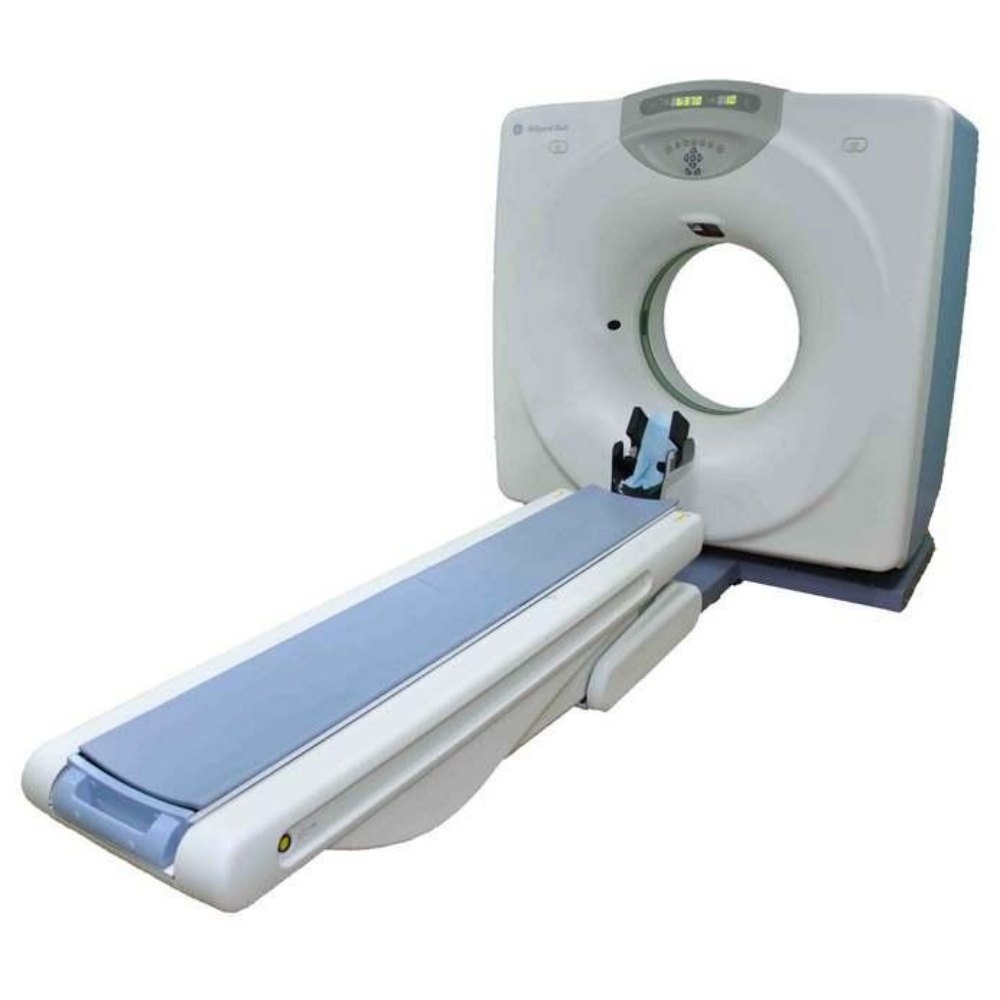

Hispeed NXI Dual

• 3.5 MHU anode heat capacity
• 820 kHU/min max anode dissipation rate
• On-Board 24 KW Generator
• 134 cm metal-free scannable range
• Supports 205 kg (450 lbs) patients accurately
• 70 cm aperture
• ± 30°Gantry tilt

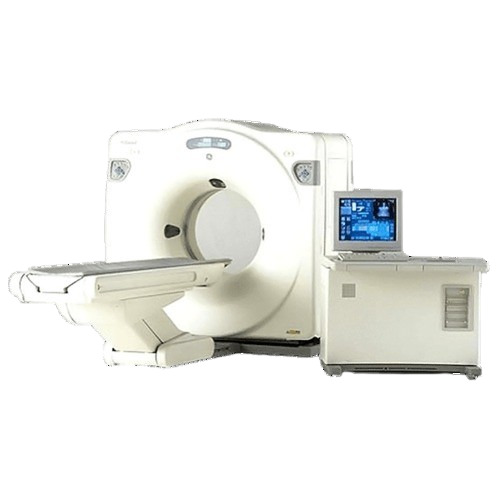

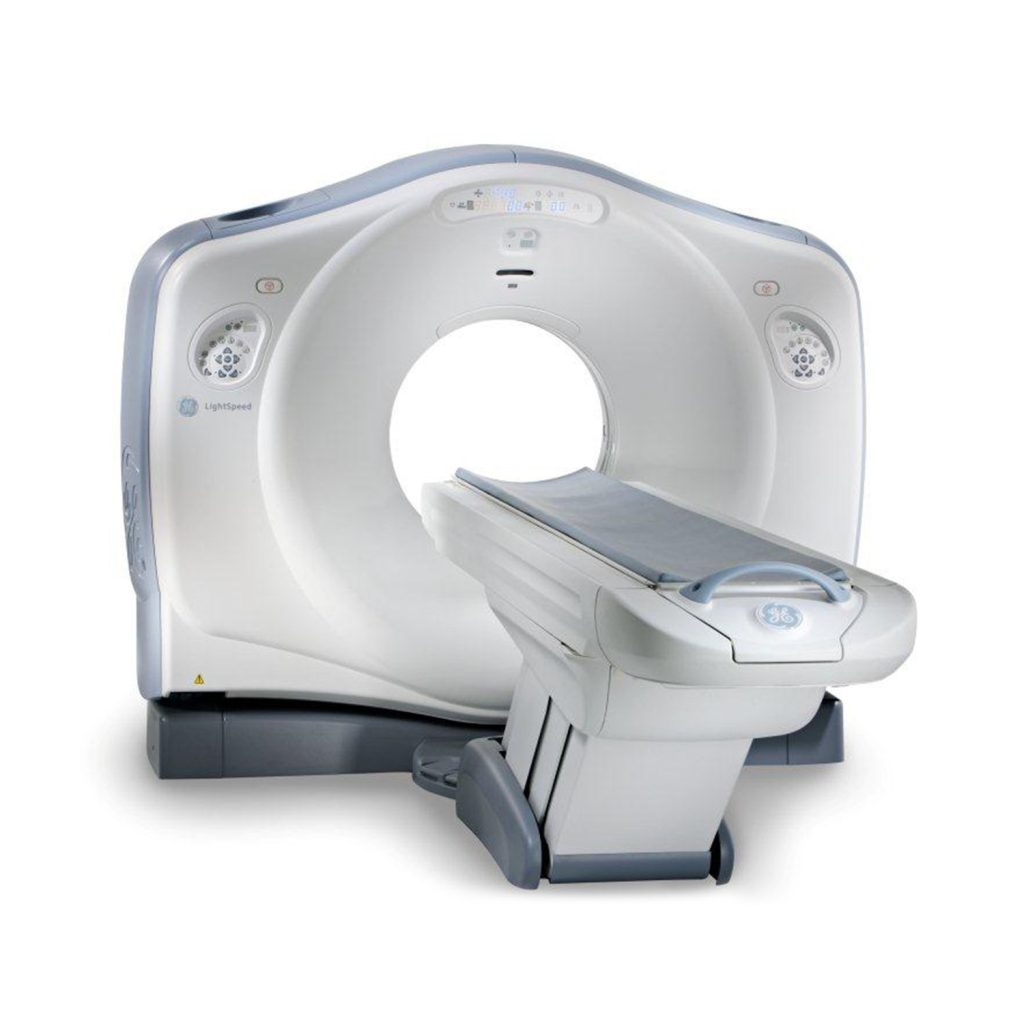

Lightspeed 4/8/16

• 440 mA capability
• 53kW generator
• High Frequency High Voltage Generator
• 6.3 MHU X-ray Tube
• Controls on Front and Back of Gantry
• In-room start
• Remote Gantry Tilt
• 205 kg (450 lb) maximum allowed with normal operation

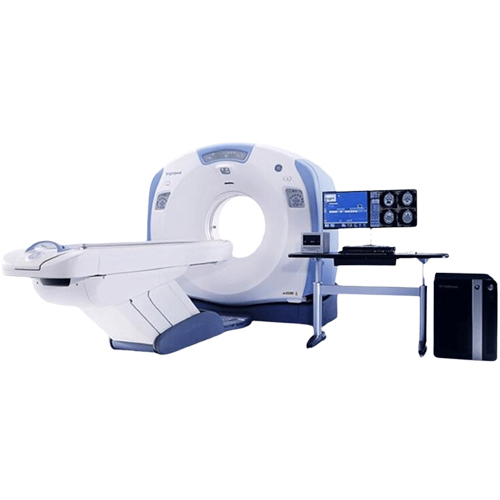

Brightspeed 4/8/16

• 440 mA capability
• 53kW generator
• High Frequency High Voltage Generator
• 6.3 MHU X-ray Tube
  Heat Dissipation:
• Anode (max) 840 KHU/min
• Casing (cont) 300 KHU/min
• Aperture: 70 cm
• Tilt: ± 300 • Maximum SFOV: 50 cm
• 180 kg (400 lb) with +/- 0.25 mm
  positional accuracy
• 205 kg (450 lb) maximum allowed
  with normal operation and +/- 1mm positional accuracy

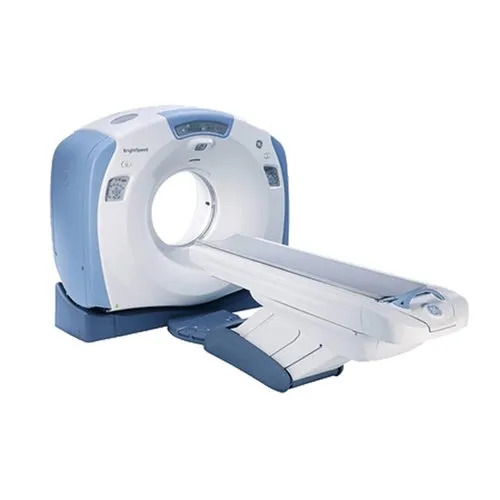

Brightspeed 4/8/16

• 3.5 MHU anode heat capacity
• 820 kHU/min max anode Dissipation reate
• On-Board 24 KW Generator
• 134 cm metal-free scannable range
• Supports 205 kg (450 lbs) patients accurately
• 70 cm aperture
• ± 30° Gantry tilt

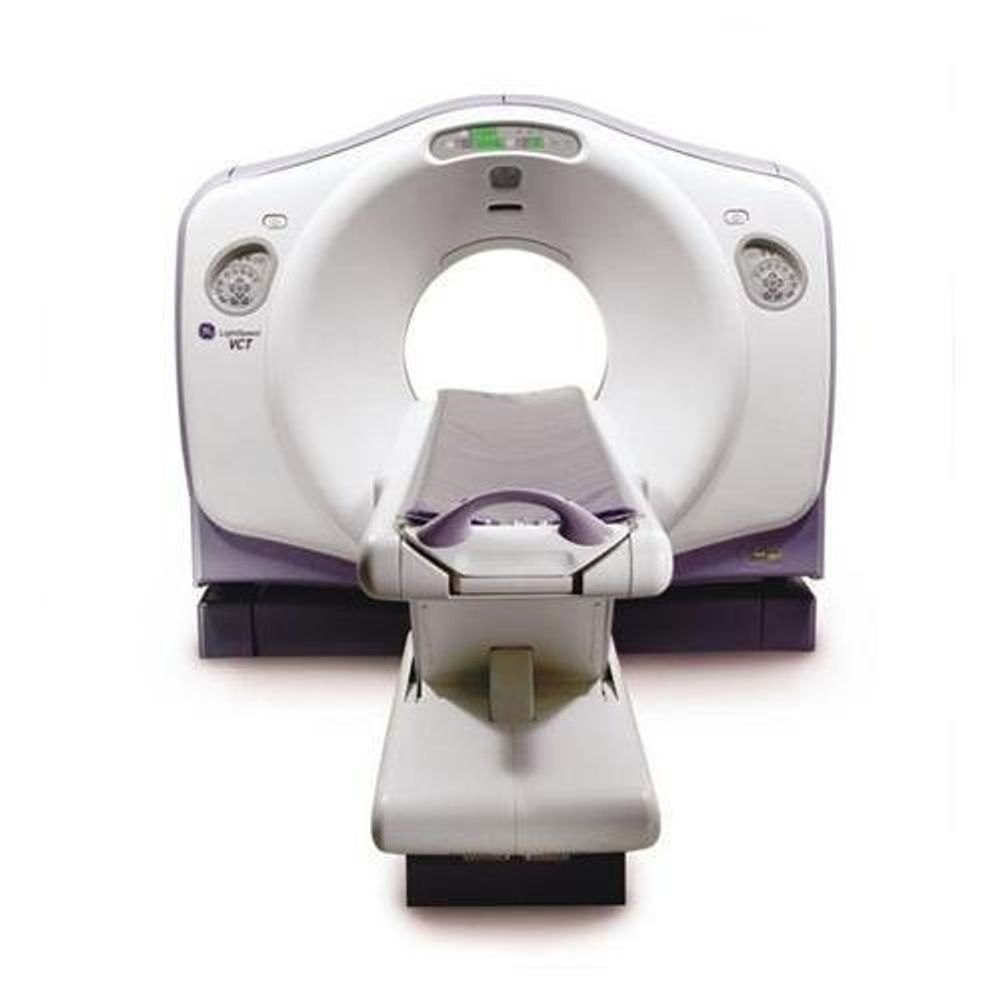

Vct

• Aperture: 70 cm
• Tilt: ± 300 • 8 MHU x-ray tube
• Anode (max) >2100 KHU/min
• Casing (cont) 648 KHU/min
• Heat Dissipation: Table Load Capacity: 227 kg (500 lb) maximum allowed with ± 0.25mm
  positional accuracy

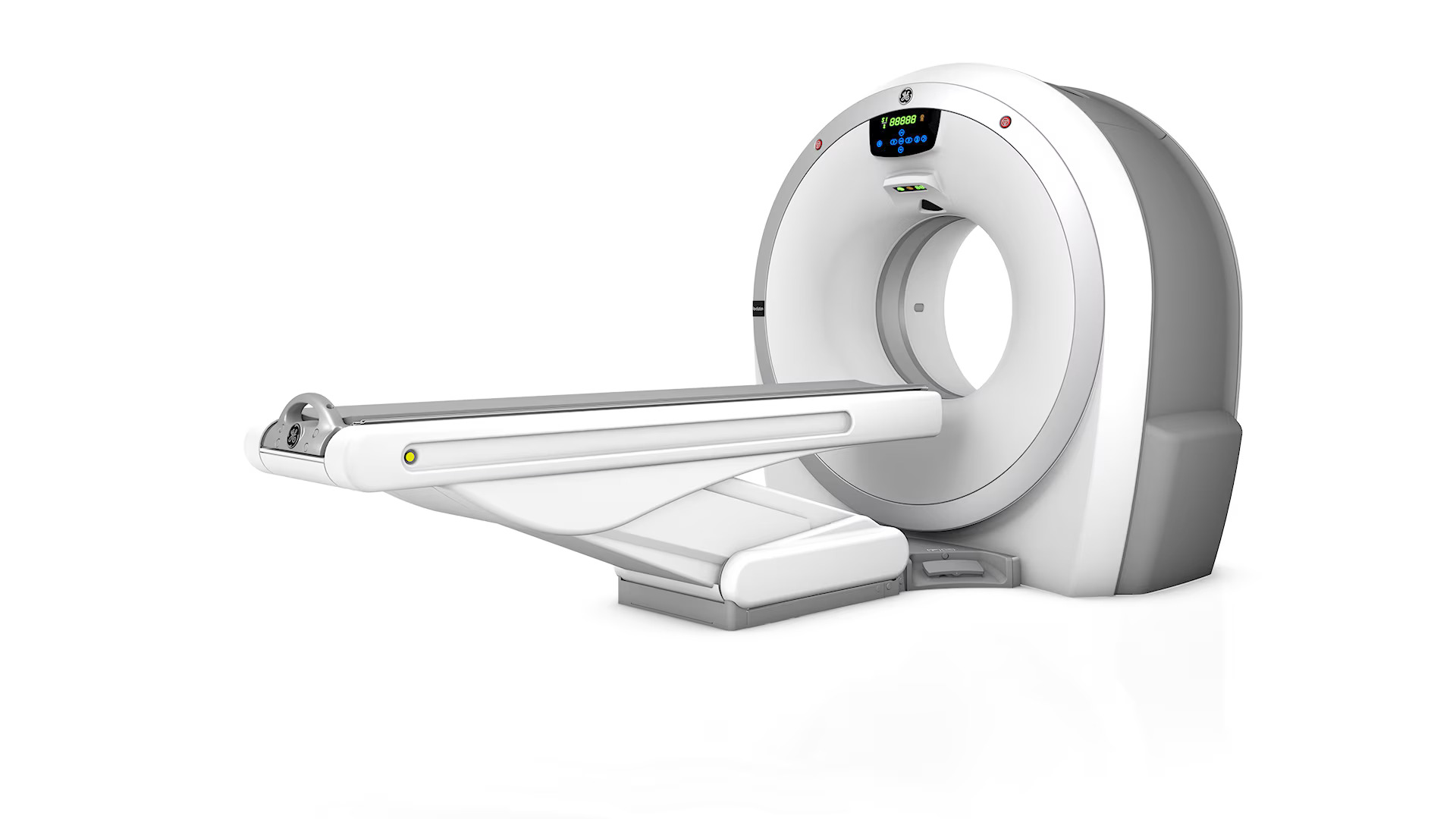

Brivo 315

• Single slice
• 2.0 MHU Anode head capacity
• 500KHU/min Max anode
  dissipation rate
• On-Board 24 KW Generator
• 120 cm metal-free scan able range
• Supports 180 kg patients accurately
• Fixed table
• 65cm aperture
• Digital tilt

Brivo 325

• Dual slice
• 2.0 MHU Anode head capacity
• 500KHU/min Max anode
  dissipation rate
• On-Board 24 KW Generator
• 120 cm metal-free scan able range
• Supports 180 kg patients accurately
• Fixed table
• 65cm aperture
• Digital tilt

Brivo 385

• 16 slice
• 2.0 MHU Anode head capacity
• 500KHU/min Max anode dissipation rate
• On-Board 24 KW Generator
• 120 cm metal-free scan able range
• Supports 180 kg
  patients accurately
• Table up and down movement
• 65cm aperture
• Digital tilt

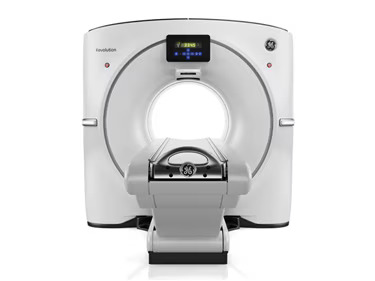

Revolution ACT 4/8/16

• 2.0 MHU Anode head capacity
• 500KHU/min Max anode dissipation rate
• On-Board 24 KW Generator
• 120 cm metal-free scan able range
• Supports 180 kg patients accurately
• Fixed table
• 65cm aperture
• Digital tilt

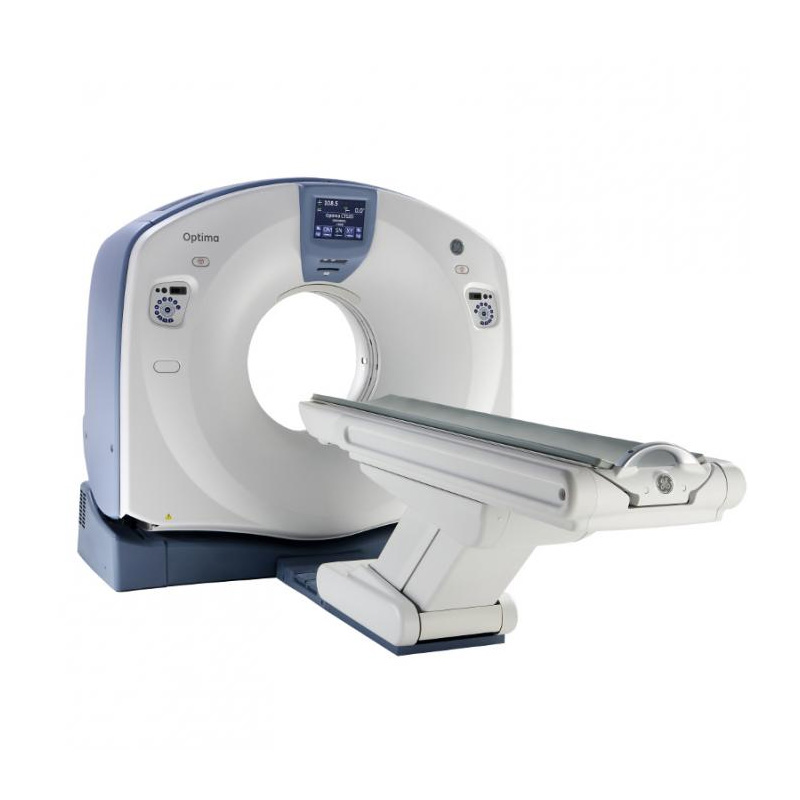

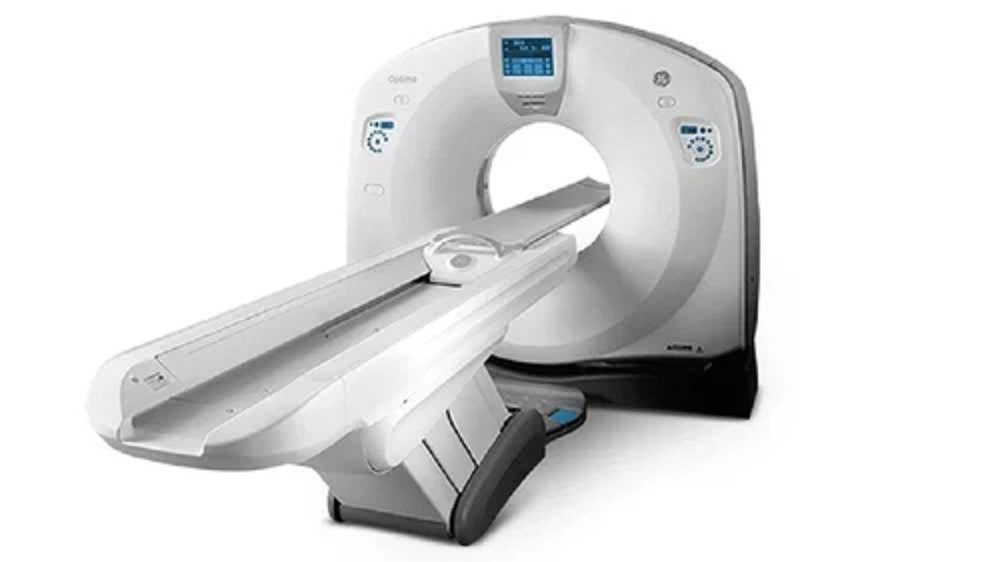

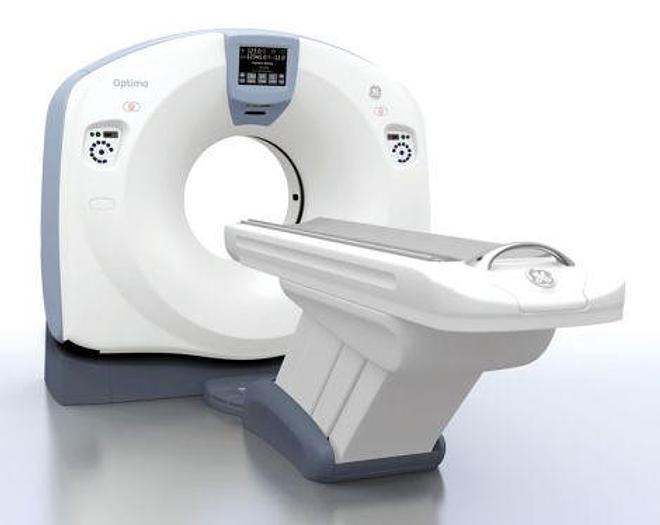

Optima 520 16/32

• 3.5 MHU anode heat capacity
• 820 KHU/min max anode dissipation rate
• On board 24 kw generator
• 134 cm metal free scan able range
• Supports 205 kg patients accurately
• 70cm aperture
• ± 30° Gantry tilt

Optima 540 16/32

• 6.3 MHU anode heat capacity
• On board 53 kw generator
• 134 cm metal free scan able range
• Supports 205 kg patients accurately
• 70cm aperture
• ± 30° Gantry tilt

Optima 660 64/128

• 6.3 MHU anode heat capacity
• Upto 73 kw generator
• 134 cm metal free scan able range
• Supports 205 kg patients accurately
• 70cm aperture
• +/- 30° Gantry tilt
